Here is a 75 Meter AM transmitter that I built in 2007

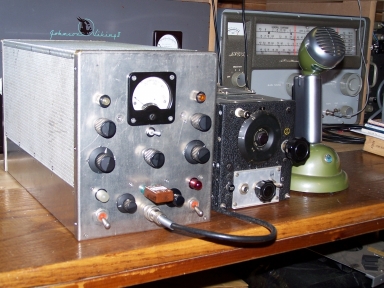

75 Meter AM rig

The transmitter is a 6146 driven by a 6CL6

crystal oscillator.  The modulator is a pair of

2E26's driven by a 12AU7 and a 12AX7.

All of the components are either WW2 surplus

or NOS parts from the 1960's.

Next to it is an ARC-5 receiver covering 75 M.

75 Meter AM Xmtr

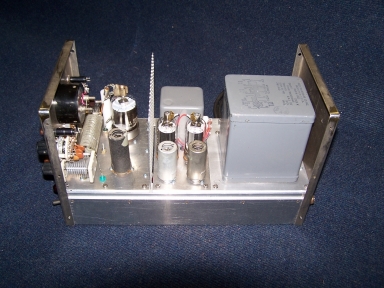

This is the transmitter with the cover off, showing

the power supply on the right, the modulator in

the middle and the RF section on the left.
