HOME-BREW  160M & 75M Class C Amplifier

3CX1500/8877 Triode in Grounded Cathode circuit.

This is to be Pulse Width Modulated by another 8877 yet to be built.

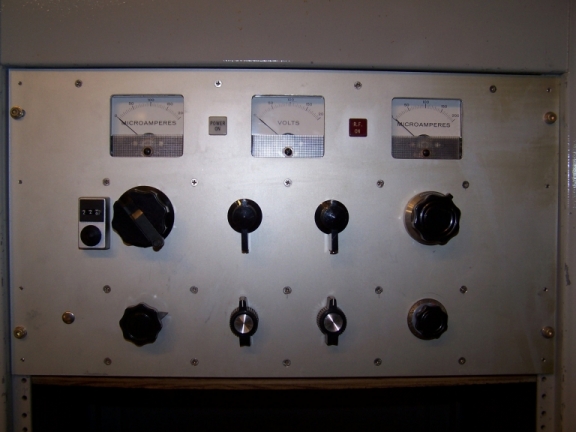

Front Panel; Plate Current, Plate Voltage, Grid Current Meters

Plate Tune Cap, Pi-Net Band Switch, L-Net Switch, Laod Cap

Grid Tune Cap, Input Band Switch, Function Switch, Bias Set
